Voltage-Gated Sodium Channel - Answers

( \newcommand{\kernel}{\mathrm{null}\,}\)



Literature-Based Guided Assessment (LGA) StackOfJournals.svg Voltage-Gated Sodium Channel



Written by Henry Jakubowski, Emily Schmitt Lavin, Arthur Sikora, and Subhasish Chatterjee

Introduction

Eukaryotic voltage-gated sodium (NaV) channels generate and sustain action potentials in nerve and muscle cells by moving Na+ ions from the outside to the inside of the cell.  This increases and makes positive the transmembrane potential of the cell, which at rest is approximately -70 mV (more negative inside).  Once activated, the channel undergoes a fast inactivation (1-2 ms), without which the firing of nerves and muscles becomes dysregulated, a potentially lethal effect.  Please view the information in Chapter 11.3 on the voltage-gated sodium channel before you do these guided assessment activities.

The questions below are derived from a paper from Jiang et al. on the structure and properties of the α-scorpion toxin LqhIII (MW 7,000) bound to rat cardiac sodium channel NaV1.5 (MW 227,000) by. (Jiang, D., Tonggu, L., Gamal El-Din, T.M. et al. Structural basis for voltage-sensor trapping of the cardiac sodium channel by a deathstalker scorpion toxin. Nat Commun 12, 128 (2021). https://doi.org/10.1038/s41467-020-20078-3.  Creative Commons Attribution 4.0 International License.  http://creativecommons.org/licenses/by/4.0/)

The Lqh toxin is made by Leiurus quinquestriatus hebraeus. It is found in North Africa, the Middle East, and Western India and is shown below.

htt.://en.wikipedia.org/wiki/Deathstalker.

The study shows how the deathstalker scorpion (LqhIII) toxin inhibits the fast inactivation of cardiac sodium channels (Nav1.5). In other words, you will see how the toxin keeps the channel open longer than it would be open in its absence.

  • In the absence of toxin, the sodium channel NaV1.5 returns in 1-2 ms to an inactive state when an 'inactivation gate" moves to occlude the open pore.
  • The α-scorpion toxin LqhIII inhibits the return of the channel to the inactive state.   Since the toxin inhibits the channel's fast inactivation of Na+ ion flow into the cell, the channel stays open longer.

The toxin leads to the inhibition of the normal fast inhibition (inactivation) of the channel. Hence the channel stays open (activated) longer.  This is analogous to the statement that the enemy of my enemy is my friend!

Here are some links within Fundamentals of Biochemistry that give background information about channels and techniques used in the article:

1. Techniques to study the Na Channel

For the experiments described in the paper, the rat sodium cardiac channel NaV1.5 was purified, its structure determined, and its functional properties (the regulated movement of Na+ to the inside of the cell - electrophysiology) in human epithelial cells measured.   The protein is expressed in rat cardiac cells and is found in the cell membrane of the cell.  The iCn3D image below shows the alpha chain of rat cardiac NaV1.5 (6UZ3) embedded in a simple bilayer (DMPC) to model how it might appear in a cardiac cell membrane bilayer.

PDB coordinates based on S. Jo, T. Kim, V.G. Iyer, and W. Im (2008). CHARMM-GUI: A Web-based Graphical User Interface for CHARMM. J. Comput. Chem. 29:1859-1865.  S. Jo, T. Kim, and W. Im (2007) Automated Builder and Database of Protein/Membrane Complexes for Molecular Dynamics Simulations. PLoS ONE 2(9):e880



Exercise 1

Complete the flow chart below to show two different approaches that could be used to purify the protein and prepare it for structural and functional studies.   On the left show steps you could use to directly purify the protein from rat hearts.  On the right use the rat gene (Scn5a) for the channel as the starting point for purification.  Here are some links for review if needed.

PurifyCharacterizerNaV1pt5CQuest.svg

Answer

From heart tissue:

  1. Homogenize heart in buffer with detergent to solubilize
  2. Preconcentrate by (NH4)2SO4 precipitation (optional)
  3. Dialyze for buffer solution exchange (as needed)
  4. Chromatography (size exclusion, ion exchange, affinity)
  5. Characterize (PAGE gel, Western blots from cells, etc.)
  6. Prep for experiments:  Reconstitute in vesicles; patch clamp
  7. Determine structure (X-ray, cryoEM, NMR)

From heart tissue DNA

  1. Clone gene into vector
  2. Transform prokaryotic/eukaryotic cells
  3. Express gene in cells
  4. Characterize (PAGE gel, Western blots from cells, etc.)
  5. Purify protein for experiments from transformed cells
  6. Prep for experiments: Reconstitute in vesicles, patch clamp
  7. Determine structure (X-ray, cryoEM, NMR)

Here are some review links:



Exercise 2

Key components of the buffer solution used to purify the channel include HEPES and 1% (w/v) n-dodecyl-β-D-maltopyranoside.  Their structures are shown below. Describe the role of each.

HEPES_BDDM_Structures.svg



Answer

HEPES, given its pKa of 7.5, is a weak acid so the proton on the -SO3H group can ionize.  At pH 7.4 (close to the pKa), the group is about half-deprotonated.  Hence this weak acid/base pair acts to buffer the solution and maintain the pH.

The maltopyranoside has no easily ionizable protons and is simply a single-chain amphiphile, a detergent that is needed to "solubilize" the protein from the cell membrane.



Exercise 3

The following iCn3D shows the interaction of the purified sodium channel with n-dodecyl-β-D-maltopyranoside (BDDM).  Explain the differences between the iCn3D models showing the protein in a bilayer and interacting with the BDDM.



Answer

Detergents such as BDDM form small (in comparison to a bilayer) micelles.  The nonpolar C12 "tails" are completely buried in a generally spherical micelle with the polar head groups (the maltose) on the surface. When added to the membrane in great excess, it forms a "mixed" micelle with the nonpolar tails surrounding the nonpolar "transmembrane" parts of the sodium channel (in this case).  This effectively "solubilizes" the otherwise nonsoluble protein and allows for the purification of the protein in aqueous solution. In this case, the "mixed micelle" is not spherical as protein orients the detergent molecules to form a disk-shaped structure. It is NOT a bilayer - look closely!





Exercise 4

The elution of the complex on a size exclusion column (Panel A) and the analyses for the eluted fractions by SDS-PAGE (Panel B) are shown in the figure below.  The α-scorpion toxin LqhIII: rat cardiac sodium channel NaV1.5 complex elutes in the area of the first peak shown in blue

a.  How do molecules separate on size exclusion chromatography?

b. Compare the molecular weights of the first peak to the second complex peak in Panel A.

c.  Which band(s) in Panel B likely represent the rat cardiac sodium channel NaV1.5 based on the intensity of the stained band?  The toxin LqhIII is the lowest band.   ( bands at 17.5K and 12.5 are  FGF12b and calmodulin, respectively, which were added to stabilize the channel)

d.  Why do the channel and toxin elute together in the size exclusion column shown in Panel A, but are separate bands in PAGE gel in Panel B?

e.  How could you get the complex to separate as two peaks, the free NaV1.5 channel, and the free α-scorpion toxin LqhIII?

f.  To get information on the receptor, go to Uniprot and paste in rat cardiac sodium channel NaV1.5 into the search box. Go to Sequence and Isoform in the left panel and find the actual MW.  Knowing this, what are the major bands at about 170K and 60K?

Structural basis for voltage-sensor trappingHeartScorpionToxinNaChanSUPPLEMENTAL1ab.svg

Figure: Purification of the recombinant NaV1.5C/LqhIII complex. a. Representative size-exclusion chromatography profile of purified rNav1.5C/LqhIII. Peak fractions collected for cryo-EM grid preparation are shown in blue. b. SDS-PAGE of the size exclusion peak fractions stained by Coomassie blue.

Answer

a.  As the name implies, size exclusion chromatography is used to separate molecules based on the effective size (actually radius) of the biomolecule. The chromatography resin beads have pores into which small molecules can enter but not large ones, which are excluded from the beads.  The smaller ones must diffuse out of the pores before they eventually elute from the column and hence elute later than larger molecules. This widely used technique in biochemistry is used to purify macromolecules and to characterize the size and molecular weight distribution of a polymer.  Ref: Size-Exclusion Chromatography

b.  The first peak eluting from the size exclusion gel contains the rNaV1.5C/LqhIII complex and has a higher molecular weight than the second peak.

c.  The bands at around 170K and 60K are the most intense and probably derive from rNaV1.5C.  The gel gives only an approximate value for the MW.

d. They separate on the PAGE gel which uses SDS to denature the proteins (which would dissociate the channel from the toxin), which run separately.

e. Denature the protein complex with SDS or urea so the two proteins dissociate and run a size-exclusion column under denaturing conditions.  Two peaks should show.

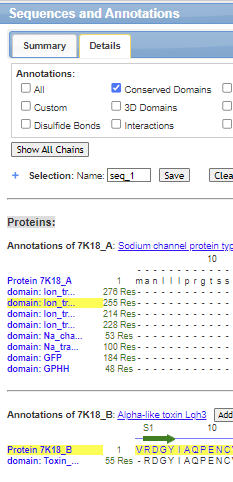

f.  Uniprot shows that the alpha chain has a MW of 227K.  The sum of the MW of the two darkest chains is around 230K so these might be proteolysis products of the intact chain.  The authors don't comment on these bands. A "crude" plot of the log MW vs Rf for the gel data is shown below.

NaV1pt5PAGE-logMWvsRf.svg

Hence the results can give a very inaccurate estimate of the MWs of the two main bands.



CryoEM was used to determine the structure of the sodium channel:toxin complex.  Here is a short YouTube video that describes the technique. Also review the appropriate part of Chapter 3.3: Analyses and structural predictions of protein structure.

Exercise 5

Describe the temperature conditions for protein samples in cryoEM.  What is the reported resolution of the cryo EM structure?  How does this compare to X-ray structures? What are some advantages of using cryoEM over X-ray crystallography and NMR to determine the structure of proteins?

Answer

Protein samples are frozen in liquid ethane (-188 °C) and cooled by liquid nitrogen (-196 °C).   A cryogenic temperature is generally below -150 °C.

The cryoEM structure of the complex had a resolution of 3.3 Å. Resolution depends on the quality of the data. Here is information from the Proteopedia website: "2.05 Å is the median resolution for X-ray crystallographic results in the Protein Data Bank.  For comparison, the van der Waals diameter of a carbon atom is 3.4-3.7 Å[4], and the length of a covalent carbon-carbon bond is 1.5 Å".  Computer algorithms refine the data to produce the observed structures.

Advantages:

  • You don't need to crystallize a protein which is tedious and difficult;
  • At such low temperatures, the positions of mobile or conformational active parts of the protein are stabilized allowing these mobile structures to be determined;
  • At low temperatures, water molecules are locked into position as well;
  • You don't have to label a protein as specific positions with NMR-active radioisotopes to determine its structure.
  • It works better for large proteins and complexes
  • X-rays don't affect the covalent structure of the protein
  • It is possible to determine different conformation states of the structure in single experiments as single particles (complex) can be studied.



Molecular dynamics was also used to probe the conformational changes in the structure of the complex on the picosecond (10-12 s) to nanosecond (10-9 s) time scale.  For a review of molecular dynamics, see Chapter 3.3: Analyses and structural predictions of protein structure.  It can be used to probe dynamic changes in protein structure which cryoEM can't.

Exercise 6

Answers these multiple choice questions (created by AIPDF through ChatGPT4 -paid version using this prompt:  Write 5 question for a biochemistry major about the use of molecular dynamics and the finding in the paper)

1. What was one of the primary uses of molecular dynamics in this research?

     -  A) Predicting the behavior of NaV channels without toxins.

     -  B) Analyzing hydration and Na+ permeation through the rNaV1.5C/LqhIII complex.

     - C) Studying the interaction between different toxins.

     - D) Predicting the behavior of potassium channels.



2. In the molecular dynamics simulation analysis, what was aligned to the initial position for each snapshot?

     - A) The α-toxin LqhIII.

     - B) The voltage-sensing domain IV.

     - C) The Cα atoms from pore transmembrane helices.

     - D) The fast inactivation gate.



3.  Approximately how long were the unrestrained "production" simulations generated?

     - A) 10.35 ns.

     - B) 5000 steps.

     - C) 300 ns.

     - D) 2 fs.



4. Based on the molecular dynamics analyses, what was observed about the activation gate structure of the rNaV1.5C/LqhIII complex?

     - A) It was fully open for Na+ conductance.

     - B) It was functionally closed for Na+ conductance.

     - C) It was in a metastable state.

     - D) It showed no significant change from the rNaV1.5C structure.

Answer

1.    B) Analyzing hydration and Na+ permeation through the rNaV1.5C/LqhIII complex.

2.    C) The Cα atoms from pore transmembrane helices.

3.    C) 300 ns.

4.    B) It was functionally closed for Na+ conductance.



The authors used two types of electrophysiological techniques, patch clamp, and voltage clamp.  Here is some brief background.

In a whole-cell patch clamp experiment, a pipet is placed on a cell, and suction is applied until a tight seal, indicated by a sharp rise in electrical resistance (gigaohm level) is made.  This is illustrated in the figure below.


Patch Clamp Resistance.  Formation of gigaseal.  Holst.  https://en.wikipedia.org/wiki/Automa..._Animation.gif.  CC BY-SA 3.0

The cell can then be connected to a patch clamp chip in such a way that transmembrane potential or current can be measured on single-channel ion flow. This is illustrated in the figure below.

Patch_Clamp_Chip.svg

Holst. Patch Clamp Chip.  Batch clamp chip showing a gigaseal, whole-cell recording configuration, and the ion channel and whole cell current.  https://en.wikipedia.org/wiki/Automated_patch_clamp#/media/File:Patch_Clamp_Chip.svg.  CC BY-SA 3.0

In patch-clamp fluorometry, part of the cell membrane is sucked into the tip with the seal intact.  Fluorescent ligands can be applied to one side of the membrane that contains an ion channel and current measurements were made as illustrated in the figure below. Alternatively, as in this paper, side chains in the S4 voltage sensor were labeled with a fluorophore, and changes in fluorescence were observed with changes in membrane potential.

Setup cPCF.png

Patch-Clamp Fluorometry.  https://www.uniklinikum-jena.de/phys...n/Methods.html





Exercise 7

Answers these general multiple-choice questions (created by AIPDF through ChatGPT4 -paid version using this prompt: Write five multiple-choice questions about the use of patch clamp techniques to measure sodium currents in cells)

1. What is the primary purpose of the patch-clamp technique in cellular electrophysiology?
     - A) To visualize cell structures.
     - B) To measure the concentration of sodium ions inside cells.
     - C) To record ion currents across cell membranes.
     - D) To stimulate cellular growth.

3. In a typical neuron at resting potential (-70 mV) and in this study (epithelial cells transformed with the rat channel, what is the direction of the sodium current when sodium channels open?
     - A) Inward, into the cell.
     - B) Outward, out of the cell.
     - C) There is no movement of sodium.
     - D) Both inward and outward simultaneously.

4. Which of the following factors can influence the magnitude and direction of sodium currents measured using patch-clamp techniques?
     - A) The concentration of potassium ions outside the cell.
     - B) The voltage across the cell membrane.
     - C) The pH of the cell cytoplasm.
     - D) The size of the cell.

5. Why might a researcher use drugs or toxins during a patch-clamp experiment measuring sodium currents?
     - A) To increase the size of the cell.
     - B) To modulate or block sodium channels and observe the effects.
     - C) To change the color of the cell.
     - D) To stimulate cell division.

Answer

1. C) To record ion currents across cell membranes.

2. D) Cell-divided

3. A) Inward, into the cell.

4. B) The voltage across the cell membrane.

5. B) To modulate or block sodium channels and observe the effects.



Exercise 8

Answer these general multiple-choice questions about patch-clamp fluorometry. (created by AIPDF through ChatGPT4 -paid version using this prompt: write 5 multiple choice questions of patch clamp fluorometry in which key amino acids in a membrane protein are labeled with a fluorophore)

1. What is the primary advantage of combining patch-clamp with fluorometry in studying membrane proteins?
     - A) It allows simultaneous measurement of electrical activity and conformational changes.
     - B) It increases the fluorescence of all amino acids.
     - C) It enhances the electrical activity of the protein.
     - D) It allows visualization of the entire cell in detail.

2. Why are specific amino acids in a membrane protein labeled with a fluorophore in patch-clamp fluorometry?
     - A) To increase the size of the protein.
     - B) To change the electrical properties of the protein.
     - C) To detect specific conformational changes in the protein during activity.
     - D) To make the protein more soluble in water.

3. Which property of the fluorophore is crucial for patch-clamp fluorometry?
     - A) Its electrical charge.
     - B) Its sensitivity to changes in the local environment or protein conformation.
     - C) Its ability to increase protein activity.
     - D) Its color in visible light.

4. In which scenario would patch-clamp fluorometry be especially useful?
     - A) When studying the overall shape of a cell.
     - B) When investigating the relationship between ion channel gating and conformational changes.
     - C) When trying to increase the fluorescence of a solution.
     - D) When observing the movement of proteins inside the cell.

5. What is a critical consideration when choosing a fluorophore for labeling amino acids in patch-clamp fluorometry?
     - A) The taste of the fluorophore.
     - B) The electrical conductivity of the fluorophore.
     - C) The photostability and brightness of the fluorophore.
     - D) The size of the fluorophore molecule.

Answer

1.  A) It allows simultaneous measurement of electrical activity and conformational changes.

2.  C) To detect specific conformational changes in the protein during activity.

3.  B) Its sensitivity to changes in the local environment or protein conformation.

4.  B) When investigating the relationship between ion channel gating and conformational changes.

5.  C) The photostability and brightness of the fluorophore.





2: Nonstructural Lab Studies of LqhIII Toxin Effects on Rat Sodium Channel NaV1.5 (rNaV1.5C)

HEK293S GnTI (epithelial-like) cells were transformed with the rat cardiac sodium channel NaV1.5 (rNaV1.5C).  The cells were then studied in the absence and presence of the toxin at varying times after toxin addition and at various concentrations of the toxin. The opening and closing of the channel were determined by measuring changes in the Na+ currents into the cell on channel opening.

Exercise 9

The resting potential of a cell is around -70 mV (more negative inside). When the transmembrane potential is depolarized by raising the transmembrane potential to around -55 mV or even more positive, the Na+ channels are activated, and an inward Na+ current (black line in a modified form of Figure 1a from the paper below) which goes downward by convention) through the channel occurs.  This is followed by a quick inactivation of the channel and the return to the baseline flow of ions.  In the experiment below, the potential was raised from -100 mV (channel closed) to 0 mV (channel open).  What is happening to the NaV1.5 Na+ channel during these 10 ms?  What is special about the current at 6 ms (indicated by the dashed vertical line)



AnswerStructural basis for voltage-sensor trappingHeartScorpionToxinNaChanPeakI.svg

Initially, the change in voltage opens the rNaV1.5C and allows an inward flow of Naions as evidenced by the vertical drop.  As described in the introduction, conformational changes in the NaV1.5C (closing of the inactivation loop), follow which closes the channel and stops the current, so the current returns to baseline within about 6 ms.  The channel is in the inactive state by around 6 ms.



Exercise 10

Figure 1a from the paper (modified) below shows a series of lines of different colored (black to red) representing Na+ currents obtained at 0 (black line) and increasing concentrations (gray through red) of the LqhIII scorpion toxin.  Let's assume that the downward Ipeak =1.  The values of I 6ms/Ipeak, calculated from the approximate values shown on the graph,  are also shown on the vertical axis  Does the toxin alter the immediate response of the cells after the channel was activated?  What effect does increasing [toxin] have on the response of the cell?  Offer a structural explanation of how the toxin affects the cell by suggesting changes in the toxin-bound structure.

Structural basis for voltage-sensor trappingHeartScorpionToxinNaChanI6smsPerItotFntoxin1.svg



Answer

The toxin at any dose does not substantially affect the initial opening of the channel since the size of the current does not change at first.  Then the toxin inhibits the rapid inactivation of the channel within the first 6 ms, leading to a prolonged inward Na+ current.  The inhibition of the inactivation is dose-dependent on the concentration of the toxin. The toxin does not completely block the quick inactivation of the channel as the lines don't return to the black baseline in the time interval measured.  This suggests that the toxin binds to the channel and either partially occludes it or prevents the normal conformational change in the NaV1.5C that causes a quick deactivation of the channel.

Since Na+ ions still flow through the channel but at a lower rate than the open state, the toxin-bound channel likely represents a 4th, or partially-opened state of the channel.





Exercise 11

Figure 1a (left) from the paper below shows the dependency of the inhibition of the quick inactivation of the channel on the log of the LqhIII concentration.  When the transmembrane potential is set to 0 mV (as in this experiment), the channel should open and the current would be maximal.  The data points in the graph are close to the ones estimated in the graph from the previous question.

a.  In the absence of the toxin, what should the current I be at 6 ms compared to the maximal Na+ current? That is, what would be the value of I6ms/Ipeak?

b.  Is the channel completely inactivated in the presence of the toxin?

c.  At 6 ms,  what concentration of toxin (nM) causes 50% inhibition of the maximum effect of the inhibitor on the normal rapid inactivation of the channel?

Structural basis for voltage-sensor trappingHeartScorpionToxinNaChanFigaright.svg



Answer

a.  In the absence of the toxin, rapid inactivation occurs so I6 ms is approximately 0, so I6ms/Ipeak = 0

b.  The channel is not completely inactivated since the toxin appears to keep it partially open as the peak value of I6ms/Ipeak does not reach 1.  The toxin does not completely block the rapid inactivation of the channel as evidenced by the fact that even at 1000 nM, when the curve plateaus (reach saturation), just 75% of the fast inactivation is blocked.

c.  The concentration of LqhIII that gives a 50% maximum inhibitor effect is approximately 11.4 nM.





Exercise 12

In the next experiment, cells were kept at -120 mV at one fixed concentration (100 nM) of toxin.  The toxin was left to incubate with the cells for various times up to 20 min.  After the incubation time, the transmembrane potential was changed to 0 mV to activate the channel, and inward Na+ currents were measured.  The results are shown in the top inset graph in Figure 1b from the paper.  (Note: It is unclear from the paper if the control was determined at 0 min with 100 nM toxin or no toxin.)

Structural basis for voltage-sensor trappingHeartScorpionToxinNaChanFig1b.svg

a.  Did the length of time cells were pre-incubated with the 100 nM toxin affect Na+ currents after depolarization of the cells?  How did the effects on the cells depend on the preincubation time?

b.  Describe and explain these results



Answer

a.  Yes, the response changes depending on the length of the preincubation with the toxin.  Note again the rate of return to the control value (black line, inactivated channel) at the various times seen in the blue lines (all in the presence of 100 nM toxin). Assuming the toxin binds in the preincubation stage to the channel, this suggests that the "effective" association of the toxin (as measured by the changes in I6ms/Ipeak) increases with time.

b.  There is a slowly increasing effect of the toxin on the channel with time before the potential is dropped.  The rise could represent the "association" rate of the toxin with the channel.  Alternatively, it could measure the "effective association" rate that combines the binding of the toxin and a slow coupled conformational change.   This effect of LqhIII and other α-scorpion toxins is achieved by trapping the voltage sensor (VS) in domain IV (DIV) of sodium channels in a conformation that allows sodium channel activation but prevents coupling to fast inactivation. Voltage-sensor trapping develops slowly and progressively over more than 20 minutes, with a half-time of 11.3 minutes at 100 nM.  The toxin also prevents the outward movement of helix S4 on Domain IV.



Here is another interesting feature of toxin binding.  The toxin binds to a site on the resting state of the NaV1.5C with high affinity.  When the cell becomes depolarized (made more + inside the cell), the affinity for the toxin decreases so it starts to dissociate. The affinity of the toxin for NaV1.5C decreases with increasing + transmembrane potential.  At very high positive potentials (+100 mV) it appears not to bind.



Exercise 13

What might account for the decreasing affinity of the bound toxin for the  NaV1.5C with an increasing transmembrane potential?

Answer

A voltage-dependent change in the conformation of either the receptor, the bound inhibitor, or both could decrease the noncovalent interactions between them, which would decrease the affinity of the toxin to the point it does not effectively bind to the channel.



Exercise 14

Time course experiments were conducted on the complex at 100 nM of LqhIII scorpion toxin.  A three-pulse protocol can be applied to alter membrane potentials:

  • 1st: a pulse from −120 mV to +100 mV for the indicated times then
  • 2nd: a 50-ms hyperpolarizing pulse (make membrane potential very negative, perhaps around -100 mV)
  • 3rd: a pulse of 50 ms to 0 mV

Note that steps 2 and 3 both occur with 0.1 s.  What is the purpose of each pulse?



Answer
  • a.  1st pulse: -120 to +100 mV, the toxin would dissociate completely and lose its effect (blocking of fast inactivation of the channel)
  • b. 2nd pulse:  channel returns to basal closed state allowing for the start of the recovery from fast previous inactivation
  • c.  3rd pulse to 0 mV: channel becomes active again and allows for the measurement extent of recovery of fast inactivation kinetics.

These 3 pulse sequence allows the investigators to monitor the extent of recovery of fast inactivation (i.e. the normal action of the channel in the absence of the toxin).  It recovers when no toxin is bound.  Hence these experiments allows a way to measure the dissociation rate of the inhibitor from a state of almost maximal inhibition of the fast inactivation by the 100 nM toxin





Exercise 15

Figure 1c from the paper below shows results for a set of 3-pulse designed to allow recovery of the fast inactivation which was blocked by the previous toxin binding.  Note that the transmembrane potential for the first pulse was +100 mV

Structural basis for voltage-sensor trappingHeartScorpionToxinNaChanFig1C.svg

a.  Describe what happens to the channel and complex.

b.  Explain the results

c.  Summarize thermodynamic and kinetic features that make the toxin so effective.



Answer

a.  The very quick time for steps 2 and 3 allows the measurements of the rate of dissociation of the inhibitor and resumption of the full quick inactivation of the channel in the absence of a bound inhibitor.  It takes about 1600 ms (1.6 s) for the inhibitor to dissociate and for the channel to be activated.

 b.  Strong depolarizing pulses to +100 mV cause dissociation of the toxin and loss of its blocking effect on fast inactivation.  Yet this dissociation takes a while.

c. It binds very tightly to the NaV1.5  channel when the channel is not depolarized.  It inhibits the fast inactivation of the channel by the inactivation gate, and it dissociates very slowly even when the potential becomes completely depolarized.





3: Structural Studies of LqhIII Toxin Effects on Rat Sodium Channel NaV1.5 (rNaV1.5C) - CryoEM

Before we discuss in detail the structure of the sodium channel and its complex with the toxin, let's look at an important attribute of molecules that helps determine their function, the actual size of the species involved.

Exercise 16

The Na+ and the K+ voltage-gated ion channels must have an open pore when the channel protein is active (Naions move across the channel).  Extracellular Na+ and the K+ ions don't exist as "naked" ions but they are hydrated by water in an aqueous extracellular environment. The figure below shows the relative sizes of these Group I cations and their hydrated forms, in comparison to the diameter of the open NaV1.5 pore in the channel.  Answer the following questions.  The red sphere (c) represents the calculated value of the diameter of water assuming its volume when it is bound to a protein is 25 Å3.

ScaleNaV1pt5Small.svg

1.  Which represents the "naked" (nonhydrated) size of the K+ ion?

2.  Which represents the hydrated Na+ ion?

3.  Based on the pore size alone, which of these species could diffuse through the pore?



Answer

1.  b     Remember from introductory chemistry that when going down a group in the periodic table for representative elements, the size of the atom and positively charged ion increases.  For the atoms and ions,  there is an additional shell of electrons going down Group 1A.

2.  d

3.  a-e.  They all could, so some other factor determines which flows through the channel. It's certainly not a K+ or "water" channel, so some other feature other than size determines the selectivity for the Na+ ion.



Exercise 17

The approximate relative sizes of the hydrated Na+ ion, pore opening, toxin, and the NaV1.5 protein are shown in the figure below along with the relative width of the bilayer (BL).  A cardiac epithelium cell is shown as a rectangle to the right.  A red dot  clipboard_e3e1a73a1b874f4892ccbb112b2ae6b12.png (not visible in the large figure) in the membrane surrounded by the red-dotted circle represents a single NaV1.5 channel.

ScaleNaV1pt5_Na6tocell.svg

1.  Which likely represents the pore?

2.  Which represents NaV1.5 channel protein?

3.  Which represents the toxin?

Answer

1.  b  (c is too big compared to the size of the smallest sphere (a) representing the hydrated Na+ ion)

2.  d

3.  c

Here is a link to an iCn3D that shows some representative distances in the membrane complex.





Exercise 18

If you hadn't read the paper, where would you consider the most likely location for a toxin to bind to affect the function of Nav1.5? Circle the most likely toxin binding site in the schematic below.  Based on the paper, where did it bind?  Redraw the toxin in the correct location based on the paper.



Answer

You may think that the LqhIII would bind to the pore loop area and block the movement of ions directly through the pore segments but note that this toxin binds to the side of the voltage-sensing region.  LqhIII binds on top of voltage-sensing domain IV, wedged between the S1-S2 and S3-S4 linkers, which traps the gating charges of the S4 segment in a unique intermediate-activated state stabilized by four ion pairs. The paper refers to this voltage- sensing domain as DIV-VS.  Na+ still moves through the pore in the presence of toxin, so it acts in another way other than blocking the pore.



Exercise 19

How is this toxin (LqIII) different in terms of its binding location from other toxins that interfere with the functioning of Nav1.5?  What is the effect of the toxin on the channel and the symptoms of this venom?

Answer

LqhIII is specific in how it binds to interfere with the voltage sensing (segment 4) of the voltage-gated sodium channel. This toxin inhibits a fast inactivation of the channel; thus keeping the channel open allowing more sodium to move through than should. This prolonged activation (inhibition of fast inactivation) typically leads to prolonged or repetitive action potentials, as well as paralysis and cardiac arrhythmias. This LqhIII toxin seems to be unique to cardiac Nav1.5 channels.  Other toxins bind to and directly block the pore, for example.



Exercise 20

What amino acids should be present in the S4 segment of Nav1.4 and why?

Answer

There should be a positively charged repeating amino acid in the voltage sensing (S4) loop. Typically this would be arginine and lysine. Arginine has a positive charge due to the positively charged guanidino group within the R group.  Lys has a positively charged (depending on the pH) amine side chain.





Exercise 21

The figure below shows an interactive iCn3D model of the rat sodium channel NaV1.5 bound to the LqhIII toxin  (7k18).

Rat sodium channel NaV1.5 bound to the LqhIII toxin  (7k18).png

Rat sodium channel NaV1.5 bound to the LqhIII toxin  (7k18). (Copyright; author via source). Click the image for a popup or use this external link: https://structure.ncbi.nlm.nih.gov/i...jpz8CFQajMKJe7

Domains I-IV are shown in gray, yellow, green, and cyan, respectively.  The magenta parts are just extensions/connectors of these domains. The LqhIII toxin is shown in dark blue.  The Ile-Phe-Met (IFM) sequence of the inactivation gate that is involved in closing the pore in fast inactivation is shown as black spheres and labeled.

It is important to know that some stretches of amino acids are missing from the structure.  These include AAs 1-120 (N-terminus), 298-301, 425-501, 602-608, and 1781-1838.



a.  To which domain does the LqhIII toxin bind?

b.  Is the binding site close to the pore-forming segments of the domain or the voltage-sensitive segments?

c.  Does the layer of red spheres represent the outer (extracellular) or inner (intracellular) leaflet of the membrane?

d.  Offer reasons that parts of the protein are missing from the structure.

Answer

a.  It binds to domain IV (cyan)

b. It binds near the voltage-sensitive segments and not near the pore.  Hence the LqhIII toxin does not simply block the pore and sterically infer with Na+ flow into the cell.

c.  The red layer of spheres represents the outer (extracellular side) leaflet of the bilayer.

d.  Some might have clipped from the protein by proteases.  This might be especially true for the N- and C-terminal ends which are missing 120 and 57 amino acids respectively.  These regions might be too conformationally flexible for their structure to be determined.  This would be especially true for an X-ray crystal structure but less likely for cryoEM structures given the cold temperatures used. About 262 amino acids are missing which is close to 30,000 daltons.  The PAGE shows that the protein runs at about 170K and an equally intense band at around 60K.



Exercise 22

The IFM motif has been shown to be conserved across all voltage-gated sodium channels.

a.  What role does it play in these channels and in Nav1.5 and why?

b.  The cause of Paroxysomal Extreme Pain Disorder (PEPD), an extremely rare disease with only 15 known affected families, appears to be mutations in the IFM motif which leads to increased sensations of pain.  What is a likely effect of the mutations in the IFM motif?

https://en.wikipedia.org/wiki/Paroxy..._pain_disorder

Answer

a. The IFM motif moves to block the central pore of the sodium channel and inactivate the channel. It is known as the inactivation motif or inactivation gate.

b.  The IFM inactivation can't occur and can't cause the quick inactivation of the channel, leading to prolonged firing of the cell.







Exercise 23

The figure below shows a different interactive iCn3D model of the rat sodium channel NaV1.5 bound to the LqhIII toxin (7k18) without a membrane representation for clarity.  It shows the selectivity filter DEKA (spacefill, CPK colors), the inactivation gate IFM and the IFM "internal receptor" F1651, L1660, and N1662 (spacefill, CPK colors), and a ring of hydrophobic residues V413, L941, I1471, and I1773 (spacefill, black) that in the closed state completely seal off the cytoplasmic opening in the pore.

Rat sodium channel NaV1.5 bound to the LqhIII toxin without a membrane representation (7k18).png

Rat sodium channel NaV1.5 bound to the LqhIII toxin without a membrane representation (7k18). (Copyright; author via source). Click the image for a popup or use this external link: https://structure.ncbi.nlm.nih.gov/i...pPzakHu6Ew6WH9

After viewing the structure from all angles, do you think that the toxin:NaV1.5 complex looks closed, open, or inactivated form?  Explain

Answer

On rotating the image, it appears that the channel is open or is in a partially open state.  Of course, this is just a guess. In addition, the IFM part of the inactivation gate is not blocking the pore.  Also, the side chains of the hydrophobic ring of amino acids (V413, L941, I1471, and I1773) do not appear to occlude the pore.  Since this is a cryo-EM structure of the protein, the protein is not in a traditional membrane with a transmembrane potential so that can not influence this structure. The structure shows that the pore in the cryoEM structure of the NaV1.5 bound to the LqhIII toxin is at least partially open if not fully open. Also note from the iCn3D structure (choose Analysis, Seq. and Annotations and look in the right-hand panel that shows sequence information) that this structure is missing large parts of the protein (either they are too conformational mobile to see even under cyroEM temperatures or more probably due to proteolysis on purification and as evidenced by the PAGE results shown previously).  Hence we can't be sure without additional studies if the pore is partially open.





4: Structural Studies of LqhIII Toxin Effects on Rat Sodium Channel NaV1.5 (rNaV1.5C) - Molecular Dynamic Simulations



Exercise 24

Now let's look at some data to see if the pore is really open, partially open, or closed in the toxin:channel complex. One clue is if the structure shows water in the pore as the Na+ ions must be hydrated to pass through the pore (the opposite case is seen with K+ channels when K+ pass through stripped of water).  Molecular dynamic (MD) simulations were done on the NaV1.5 with and without the toxin to simulate the environment in the channel opening.  The results of the MD simulations are shown below in Figures 6 a and c from the paper.



Structural basis for voltage-sensor trappingHeartScorpionToxinNaChanFig6AC.svg

Molecular dynamics analysis of hydration and Na+ permeation through the rNaV1.5C/LqhIII complex.

Panel a shows a side view of rNaV1.5C (orange ribbons; domains II and IV) from MD simulations highlighting Na+ ions (blue spheres), the water-occupied volume within a cylinder of radius 8.5 Å (red surface), and the protein-occupied volume within a cylinder of radius 12 Å (colorless surface). The cavity within the pore is outlined with a black rectangle. The region of the intracellular activation gate is shown as a purple band.

Panel c shows molecular representations of the gate containing Nwater = 3 (left) or 15 (right) water molecules

Based on these studies, do you believe the pore is closed, open, or partially open?



Answer

Although there is an opening at the cytoplasmic face of the pore, there are no waters in the central part of the pore in some simulations, so Na+ could not move through the channel.  This suggests that the pore is "functionally" closed.  Yet some water could find its way into the central part of the pore.  Hence the toxin works to slow and prevent fast inactivation without opening the pore.  This appears to conflict with our conclusion that the complex does have an opening present (the hydrophobic gate is not clamped shut).  The presence of water on either side of the black rectangle suggests that some water might pass through with Na+ ions in longer MD simulations. Combining both sets of data, perhaps the best conclusion is that the pore is closed or at best partially open, but could facilitate conversion to the open state.  This would account for the fact that the toxin slows and prevents the inactivation of the channel.



5: Detailed Structural Analyses of LqhIII Toxin Effects on Rat Sodium Channel NaV1.5 (rNaV1.5C)



Exercise 25

From the iCn3D model, write the sequence of the S4 segment that contains the Arg side chains and describe the properties of the amino acids in the sequence.   Do this by scrolling along the sequence window in iCn3D (shown below) until you find the labeled Arg shown in the model.


Answer

The helical sequence from amino acid 1621 and on is PTLFRVIRLARIGRILRLIR. Note that the intervening amino acids are nonpolar which makes sense if the peptide is part of a transmembrane domain.




Exercise 26

Is the helix amphiphilic?  That is, are the Arg side chains all on one face of the helix and the nonpolar on the other?  To find out, copy and paste the sequence of S4 (above) in this helical wheel predictor and run the program.

Answer

It is not!  Here is the result of the helical wheel predictor showing a view down the alpha helix axis.  The Arg side chains (Rs) are not found just on one face of the helix but distributed around it.




Exercise 27

Make a simplified view of the iCn3D model by hiding Domains 1-III to more readily see the contributions of S5 and S6 of Domain IV to the pore.

  • open iCn3D and load 7K18.
  • With your mouse or trackpad, choose Sequence and Annotation in the top menu bar
  • Choose the Details tab
  • Ctrl-Click the two sequences highlighted in yellow below for Domain IV and the toxin.
  • Choose View from the top menu bar and then View Selection
  • Choose Style, Background, Transparent





6: Noncovalent Interactions of LqhIII and Domain IV/VS

Now let's look at the actual interaction of the toxin with the Domain IV/VS of the channel.  A closeup showing the interaction site is shown in Figures 3 b and c from the paper below.  Panel C next to it shows the NMR-solution structures of the toxin in the absence of the channel.   Each structure determined is represented by a single color line color codes red at the C-terminus to blue at the N-terminus.

Structural basis for voltage-sensor trappingHeartScorpionToxinNaChanFig3BC.svg

Panel b: CryoEM structure of the  rNaV1.5C Domain IV/VS and LqhIII complex; Panel c:  NMR structure of free LqhIII



Exercise 28

Using this iCn3D model, describe the secondary structure of the bound toxin.  How many pairs of cysteine residues are in the LqhIII toxin. Identify which cysteines are involved in the disulfide bonds.  What effect do the disulfide bonds have on the beta sheet structure?

Answer

The bound inhibitor has a short alpha helix and a small 3-stand antiparallel beta sheet.  The 3 disulfide pairs are made from  Cys pairs are 16/37, 47/23 and 12/65. The two longer beta strands are stabilized by two disulfides which likely lock in part of the structure of the toxin.





Exercise 1

What sections of the toxin in panel B make the closest interactions with the Domain IV/VS of the channel?   Describe their conformation flexibility in the free toxin.

Answer

The disulfide bonds in the toxin stabilize the structures of the beta sheet structure, but allow significant flexibility in the β2β3 loop and C-terminal region of the toxin, the exact regions that bind the receptor. These two flexible regions can alter conformation and inset into a cleft in the Domain IV/VS involving the S1–S2 and S3–S4 helices.

SDSD

The figure below shows an interactive iCn3D model of a surface rending of Domain IV of the rat sodium channel NaV1.5 bound to the LqhIII toxin  (7k18).

Surface rending of Domain IV of the rat sodium channel NaV1.5 bound to the LqhIII toxin  (7k18).png

Surface rending of Domain IV of the rat sodium channel NaV1.5 bound to the LqhIII toxin  (7k18). (Copyright; author via source). Click the image for a popup or use this external link: https://structure.ncbi.nlm.nih.gov/i...x5QRPEctT5zsW7.

The molecular surface and underlying secondary structure of the LqhIII toxin are shown in magenta, with key residues H15, H43, and K64 shown as CPK-colored sticks and labeled.  Domain IV/VS of the channel is shown in cyan, with key amino acid side chains T1608, D1612, and Q1615 shown as colored and labeled sticks.



Exercise 29

Comment on the shape and possible side chain interactions that contribute to high-affinity binding of the inhibitor to Domain IV/VS.

Answer

The shapes are very if not completely complementary (a necessity for high-affinity binding).  Hydrogen bonding and electrostatic interactions are likely between opposing amino acids and contribute to high affinity binding as well.





Figure 3d from the paper below shows the detailed interactions between LqhIII and DIV-VS. Key residues shown in sticks were labeled. Interaction surfaces of the DIV-VS (blue) and the LqhIII (purple). Key residues for the interaction are shown in yellow shading and embedded stick

Structural basis for voltage-sensor trappingHeartScorpionToxinNaChan3D.svg

The figure below shows an interactive iCn3D model of the rat sodium channel NaV1.5 Domain IV bound to the LqhIII toxin  (7k18).

Rat cardiac sodium channel NaV1.5C - LqhIII complex and LqhIII binding site (7k18).png



Rat cardiac sodium channel NaV1.5C Domain IV/LqhIII toxin complex (7k18). (Copyright; author via source). Click the image for a popup or use this external link: https://structure.ncbi.nlm.nih.gov/icn3d/share.html?JAjUQAZDZoQ5wiVX9

The toxin is shown in magenta.  The segments are colored as follows: S1 is red, S2 is orange, S3 is yellow, S4 is cyan, S5 is brown and S6 is violet.  Key amino acid pairs involved in the binding of the toxin to Domain IV are shown in sticks and labeled.



Exercise 30

In summary, name and locate the amino acid residues that serve the following roles in the LhqIII toxin: DIV-VS interactions.

  1. Which amino acids in the toxin interact with D1612 (the paper describes the interaction as pincers surrounding D1612).
  2. The conserved negatively charged residue in the Nav1.5 channel
  3. What position is Thr in and what is thought to be its role in the mechanism?
Answer
  • His 43 and His 15 (H43 and H15)
  • Asp 1612 (D1612)
  • Thr 1608 (carbonyl of His 43) is thought to interact with the backbone carbonyl of Thr 1608 which may contribute to affinity and/or specificity of interactions with the β2β3 loop of the C terminal region of the toxin.



6.1: Comparison of Activated DomIV-Voltage sensor (VS) with Toxin-bound Partially activated DomIV-VS

Now we'll try to understand Figure 4, Conformational Change of DIV-VS,  from the paper and pay special attention to the section of the text, “An intermediate-activated state of DIV-VS trapped by LqhIII” - Let’s dissect Figure 4 A and B.

Figure 4a/4b from the paper below shows the conformational change of Domain IV-Voltage sensor (DIV-VS) comparing the activated and partially activated state with the bound toxin.

Structural basis for voltage-sensor trappingHeartScorpionToxinNaChanFig4.svg

Panel a shows the activated domain IV with key Arg side chains in S4.  Panel B shows the partially activated domain IV with the same key Arg side chains in S4.  The bound LqhIII is shown as a purple chain.  In panels a and b, the:

  1. activated Nav1.5 DIV-VS (the voltage sensing domain) is in grey (fig 4a)

  2. the intermediate-activated Nav1.5DIV-VS is in blue (Fig 4b)

  3. side chains of gating charges of Arg are shown in grey and blue sticks in 4a and in shades of blue sticks in 4b. Side chains in the ENC are shown in red, in the HCS in yellow, and in the INC  in red;

  4. the shift of each gating charge was indicated by black dashed lines between the structures in panels a and b.

The shift from the cytoplasmic to extracellular parts of the channel is shown in the region between the two panels. The black Rs in the activated DIV-VS(panel A) are further up in the diagram (towards the extracellular region) and further down in the partially activated DIV-VS bound to the toxin.



Exercise 31

Locate the 6 arginines? (R1-R6) with the blue indicating the N atoms in the positively charged Arg side chain of S4 in Domain IV in one of the iCn3D models above.   What do the following abbreviations mean? ENC, HCS, and INC.

Answer

The Args in S4 of Domain IV are at amino acid positions 1625, 1628, 1631, 1634, 1637 and 1640.

ENC: Extracellular Negative Cluster; HCS:Hydrophobic Constriction Site; INC: Intracellular Negative Cluster.





Exercise 29

From Figure 4a to 4b, explain from an electrostatic viewpoint how the movement of the Args towards the extracellular region would promote the movement of Na ions inward.  Explain how the movement of Na+ ions would be diminished in the presence of the toxin.

Answer

A movement of 6 + Arg side chains (called gating charges) towards the extracellular region would be accompanied by a greater electrostatic and thermodynamic pull to move Na+ ions inward towards the intracellular side.

In the toxin:channel complex, the Args have not moved as far in the extracellular direction.  Each gating charge Arg in the intermediate-activated DIV-VS is positioned ∼10–12 Å further inward than in the fully activated DIV-VS

6.2 Comparison of Active and Intermediate-Activated, and Intermediate/Resting state

Now consider Figures 4 C and D from the paper below:

4c: Superposition of NaV1.5 DIV-VS between the fully activated state and toxin-bound intermediate-activated state. Red arrows indicate the conformational changes.

4d: Superposition of the intermediate-activated NaV1.5 DIV-VS and resting-state NaVAb-VS

Structural basis for voltage-sensor trappingHeartScorpionToxinNaChanFig4CE.svg



Exercise 32

a.  Locate the region in Figure c above that shifts the most from the fully activated to intermediate-activated state of the DIV-VS.

b.  Describe the difference shown in Figure d between the intermediate-activated DIV-VS structure (blue) upon the resting state NaVAb-VS structure (orange)

c.  What do these differences imply about the conformational states of the apo and toxin-bound channel?

Answer

 a.  From S1 through most of S3 there is little or no structural change, whereas the final two helical turns of S3 and the entire S4 segment undergo dramatic conformational shifts. Notably, Gly1607 serves as a pivot point for S3 rotation, and the rotation of upper S3, in turn, moves S4 downward ∼11 Å, such that R1 and R2 in the intermediate-activated state are approximately in the positions of R3 and R4 in the fully activated state

b.  The connecting S3–S4 loop of the intermediate-activated state of the LqhIII/rNaV1.5C complex is not located as deeply inward as that of the resting-state of NaVAb and is not as tightly twisted. Moreover, the R1 and R2 gating charges are both located fully outward from the HCS in the partially activated S4 segment in the LqhIII/rNaV1.5C complex, whereas R1 is positioned only partially outward from the HCS in the resting state of NaVAb. In addition, the S4–S5 linker in the intermediate-activated state has not moved as deeply into the cytosol as in the resting state.

c.  toxin-induced intermediate-activated state of NaV1.5 VS is indeed an intermediate state between the resting state and the fully activated state.



7.  Summary



Exercise 33

Why might the mode of action be specific for cardiac muscle cells as compared to other toxins that act on sodium channels in skeletal and nerve cells?

Answer

One possibility:  Cardiac cells need to have quick inactivation of sodium ion channels to maintain the action potential controlling heart contractions. By interfering with this mechanism specifically the toxin can have a targeted maximal effect.



After this guided research literature module, you can hopefully better understand the findings in the paper which are summarized in this abstract:

"Voltage-gated sodium (NaV) channels initiate action potentials in excitable cells, and their function is altered by potent gating-modifier toxins. The α-toxin LqhIII from the deathstalker scorpion inhibits fast inactivation of cardiac NaV1.5 channels with IC50 = 11.4 nM. Here we reveal the structure of LqhIII bound to NaV1.5 at 3.3 Å resolution by cryo-EM. LqhIII anchors on top of voltage-sensing domain IV, wedged between the S1-S2 and S3-S4 linkers, which traps the gating charges of the S4 segment in a unique intermediate-activated state stabilized by four ion-pairs. This conformational change is propagated inward to weaken binding of the fast inactivation gate and favor opening the activation gate. However, these changes do not permit Na+ permeation, revealing why LqhIII slows inactivation of NaV channels but does not open them. Our results provide important insights into the structural basis for gating-modifier toxin binding, voltage-sensor trapping, and fast inactivation of NaV channels."


8.  Extensions

1.  Interesting sidebar:  https://www.sciencedirect.com/science/article/pii/S0021925819308300?via%3Dihub

Chlorotoxin (Cltx) is a 36-amino acid peptide that was originally isolated from Leiurus quinquestriatus venom (14) and has been shown to inhibit small conductance Cl− channels in colonic epithelial cells (14, 15). Cltx also inhibits Cl− fluxes across glioma membranes (13, 16). Immunohistochemical studies show that Cltx specifically and selectively binds to glioma cells (17) and radiolabeled Cltx targets tumor cells in mice bearing xenografted glioma tumors. Glioma cell migration and invasion into fetal brain aggregates is significantly reduced by Cltx (13). A recent survey of over 200 tissue biopsies from patients with various malignancies suggests that Cltx binds to the surface of gliomas and other embryologically related tumors of neuroectodermal origin (18) but not to normal brain.

2.  Deathstalker scorpion venom also contains chlorotoxin - This is a very interesting story.

https://www.acs.org/molecule-of-the-week/archive/c/chlorotoxin.html#:~:text=Strichartz%20at%20Harvard%20Medical%20School,diagnosing%20and%20treating%20some%20cancers.

Note and remember LqhIII is an alpha toxin

3.  https://www.sciencedaily.com/releases/2010/08/100811125947.htm

4.  How much is deathstalker venom worth?

5.  Looks like a great review article: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7277529/

6.  Scorpion Venom: Detriments and Benefits

7.  Lookfor possible therapeutic potential here https://www.venomdoc.com/

8.  Very cool venom graphic - https://www.venomdoc.com/new-page-2

9.  The Toxicogenomic Multiverse: Convergent Recruitment of Proteins Into Animal Venoms:  https://static1.squarespace.com/static/55a239e2e4b0b3a7ae106f25/t/59814ceae6f2e10bc7ada5f1/1501646072821/2009_Fry_Toxicogenomic_multiverse.pdf

10.  The deathstalker scorpion venom alone has been found to have several different kinds of toxins including chlorotoxin (inhibit chloride channels), charybdotoxin (inhibit potassium channels), and agitoxins (affect sodium channels)..  https://www.sciencedirect.com/topics/biochemistry-genetics-and-molecular-biology/leiurus-quinquestriatus. Chlorotoxin was found to selectively bind to glioma cells and serve as a marker for glioblastoma.  https://www.acs.org/molecule-of-the-week/archive/c/chlorotoxin.html#:~:text=Strichartz%20at%20Harvard%20Medical%20School,diagnosing%20and%20treating%20some%20cancers. This feature of the scorpion venom was developed by J.M. Olson at Fred Hutchinson Cancer Center (Seattle) as a product called Tumor Paint https://www.fredhutch.org/en/news/center-news/2014/09/tumor-paint-US-trial.html


Voltage-Gated Sodium Channel - Answers is shared under a not declared license and was authored, remixed, and/or curated by LibreTexts.

Support Center

How can we help?
