2.3: Biologically Important Macromolecules

Understanding Chemistry in 3D

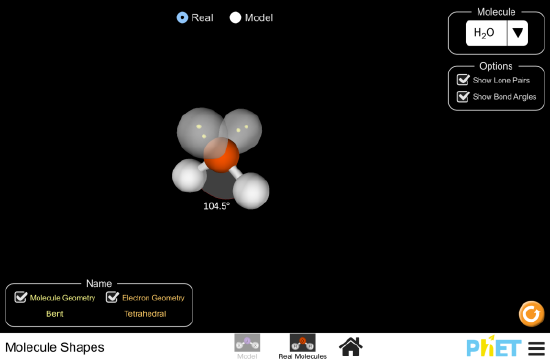

1. Click on the image above to launch the simulation.
2. Choose “Real Molecules”.
3. Click on “Show Bond Angles”.
   • You may also deselect “Show Lone Pairs”.
4. Drag the atoms to understand the 3-D shape.
5. Choose CH₄ from the drop-down menu of molecules.
   • CH₄ is methane, the simplest organic molecule.
   • Notice the restraints on the physical space occupied by the atoms as you drag the atoms around.
   • Remember these bond angles and constraints when we explore organic chemistry.
   • Toggling between “Model” and “Real” will illustrate if the position of the atoms are influenced by other factors we don’t see.
6. Choose NH₄ from the drop-down menu.
   • NH₄ is ammonia, a polar solvent.
   • NH₄ is NOT an organic molecule.
   • Toggle the lone pairs to see how these electrons play a role in the positioning of atoms.
7. Choose CO₂ from the drop-down.
   • Explore this non-organic molecule to visualize the effects of double bonds on geometry.

Organic Chemistry

Living things are composed of organic molecules primarily made up of the elements carbon and hydrogen. Molecules of hydrogen and carbon (referred to as hydrocarbons) have the property of being nonpolar. Yet 70- 90% of cells are composed of water (a polar compound). Polar substances mix with other polar substances. Likewise, non-polar substances interact with other non-polar compounds. Polar and non-polar compounds are immiscible (unable to mix).

So How do Cells Keep From Falling Apart in a Liquid Environment?

Functional groups are clusters of atoms in a group that impart a new “function” to the compound they are attached to. Hydrocarbons in cells have functional groups attached to them that permit them to interact with the water environment of the cell. These functional groups also define the type of molecule it is based on the characteristics of those groups.

Functional Groups. Functional groups commonly found in organic compounds. R is a placeholder chemical that can be anything (like a hydrocarbon chain). The functional groups in this table are those that add polar or charged properties to the hydrocarbon chains. Bi-directional arrows indicate that those functional groups dynamically ionize and reach an equilibrium in solution.

How are Macromolecules Assembled?

The common organic compounds of living organisms are carbohydrates, proteins, lipids, and nucleic acids. Each of these are macromolecules or polymers made of smaller subunits called monomers. The bonds between these subunits are formed by a process called dehydration synthesis. This process requires energy; a molecule of water is removed (dehydration) and a covalent bond is formed between the subunits. Because a new water molecule is formed, this is also referred to as condensation. The opposite where water and energy are used to break apart polymers into simpler monomers is called hydrolysis (hydro– water, lysis– to break or split).

Polymer formation. Dehydration reactions join monomers. Hydrolysis splits polymers.

Where Do We Find Macromolecules?

A nutrition label illustrates the breakdown of chemical components of Macaroni and Cheese. This is not limited to the macromolecules discussed here. Items like Iron and Sodium are ions that are important for the function of the cell.

Additional Resources

• Carbohydrates http://www.visionlearning.com/en/library/Biology/2/Carbohydrates/61
• Lipids http://www.visionlearning.com/en/library/Biology/2/Lipids/207/reading
• Fats and Proteins http://www.visionlearning.com/en/library/Biology/2/Fats-and-Proteins/62

Vocabulary

Carbohydrates Reducing sugar Polymer Monomer Monosaccharide Disaccharide Polysaccharide

Dehydration synthesis Hydrolysis Reduction Aldehyde Ketone Lipid
